Fresh electric freezer DZX200D
33 Items in Stock
DZX200D
Battery
Rooftop
-5℃~+25℃

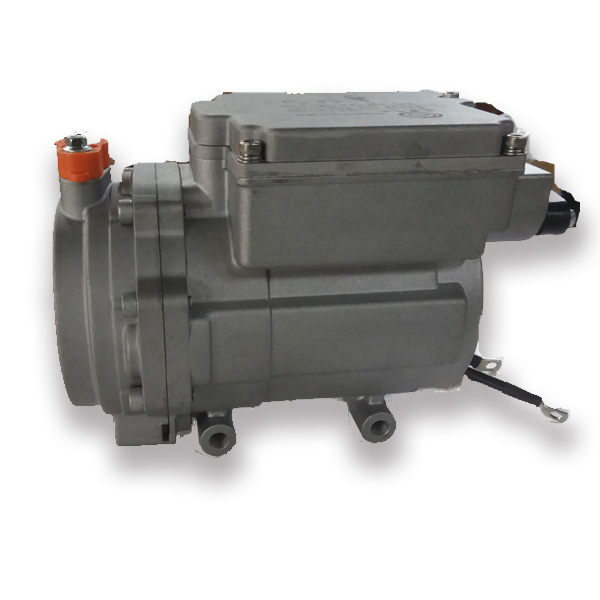

Electric compressor
R134a
Battery
Rooftop
-5℃~+25℃
Electric compressor
R134a

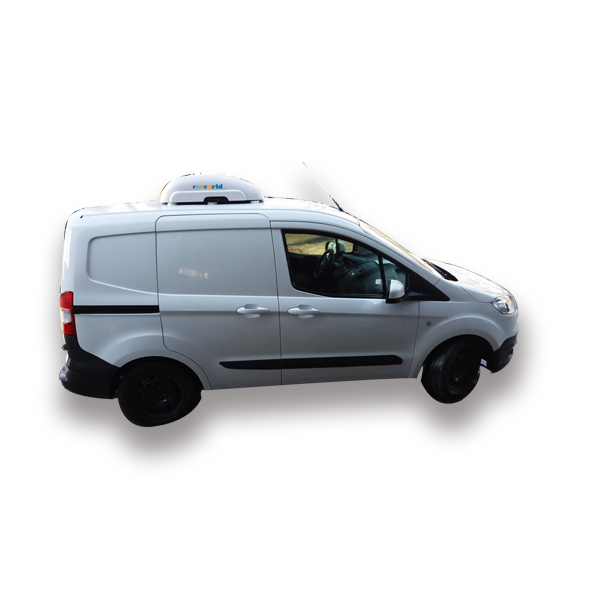

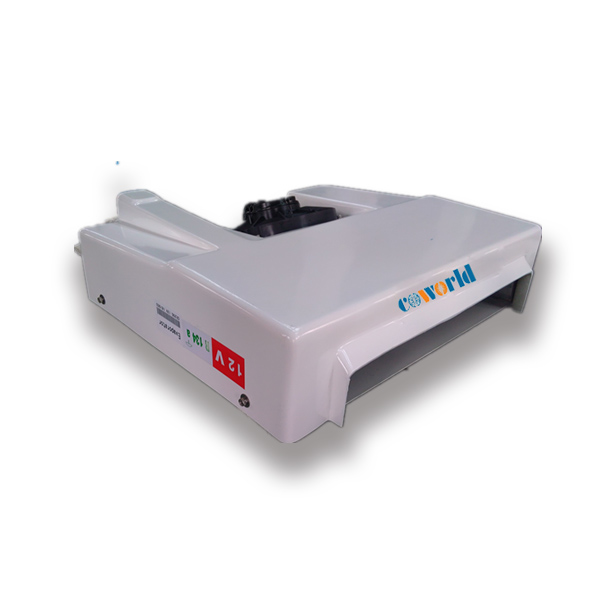

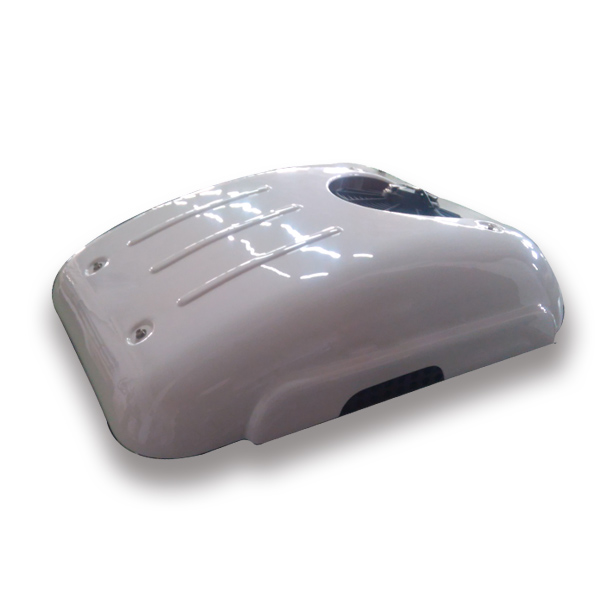

Electric van refrigeration unit DZX200D
Description

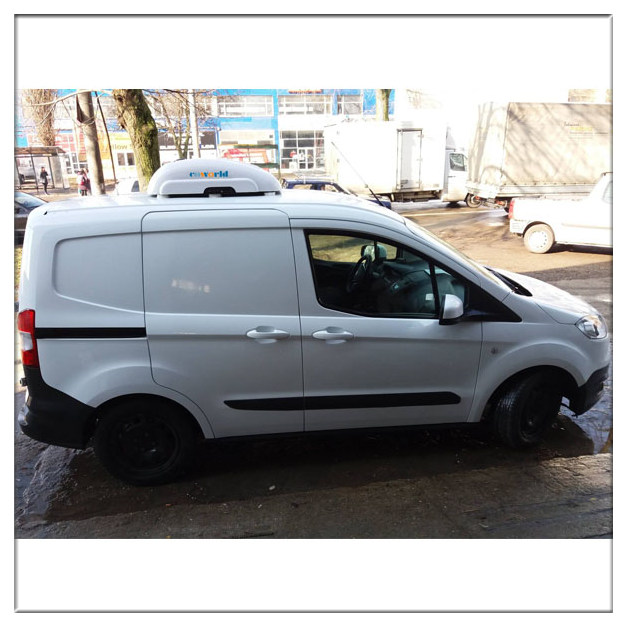

- The DZX200D van refrigeration is an electric model which is driven by battery directly.
- The electric rooftop refrigeration is green and environmental friendly.
- The stream line design of van freezer is a bright point.
- Quick cooling, easy to install are what attract customers very much.
| Model | DZX200D | |
| Temperature | -5℃～+25℃（Fresh） | |
| Cooling capacity | 1700W（0℃） | |
| Box’s volume | 7 m³（0℃） | |
| Voltage | DC12V,24V,48V,60V,72V, | |
| Compressor | 25 cc/r | |
| Condenser | Model | Parallel flow |
| Fan/Air Flow | 1 Fan, 1100 m3/h | |
| Evaporator | Model | copper pipe & Aluminum Foil fin |
| Blower/Air Flow | 1 Fan, 800 m3/h | |
| Refrigerant | R134a 1.0~1.1Kg | |
| Structure | Vehicle battery driven | |

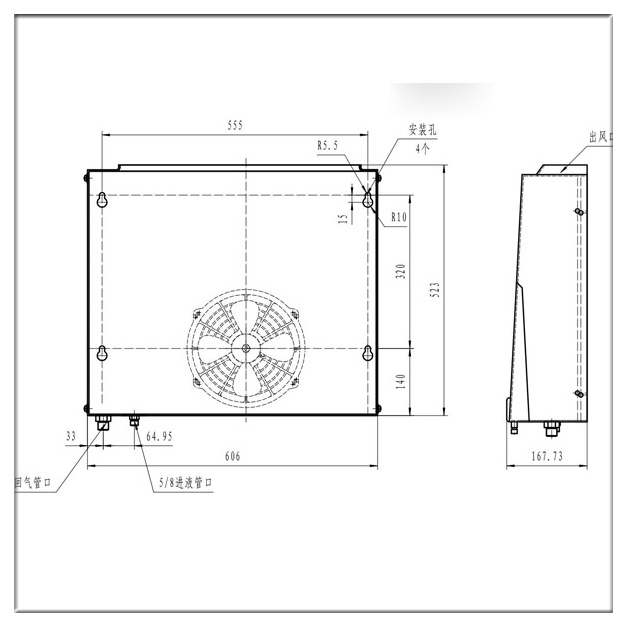

| Dimensions（mm） | Evaporator | 610×550×175 |

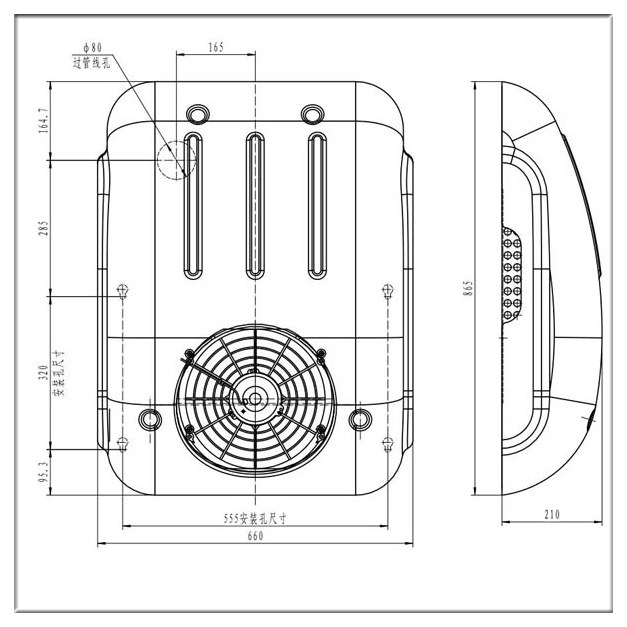

| Condenser | 865×660×210 | |
Dimension
Package
In wooden case and carton
Others
After-sale
The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
