Frozen van refrigerator DZD300
Frozen van refrigerator DZD300
Frozen van refrigerator DZD300
Frozen van refrigerator DZD300
Frozen van refrigerator DZD300
Frozen van refrigerator DZD300
33 Items in Stock
DZD300
Engine driven
Rooftop
-18℃~+15℃
5H14
R404a

Rooftop van refrigeraiton unit DZD300


Description

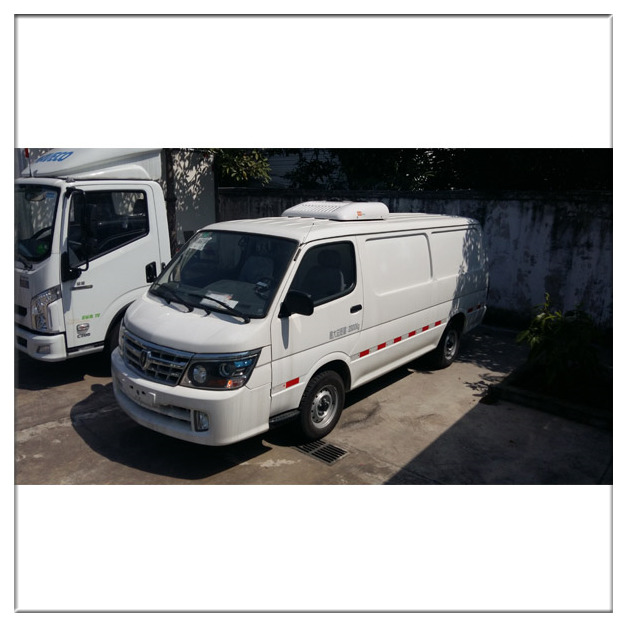

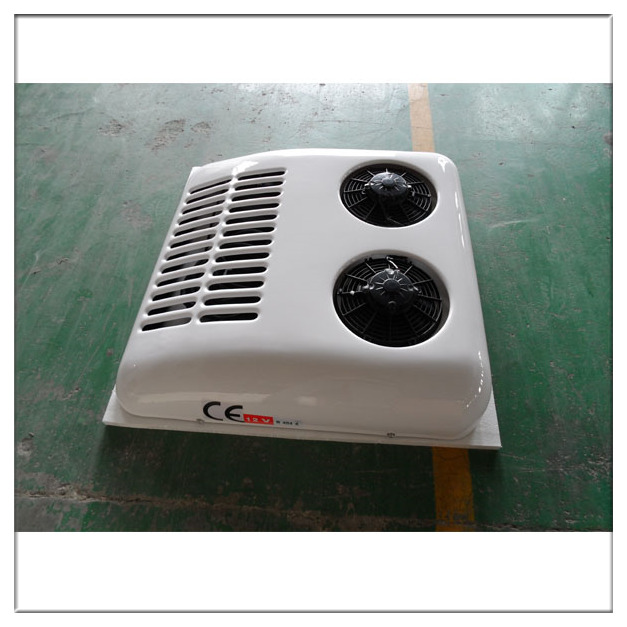

  • The DZD300 van refrigeration is a rooftop system.
  • The rooftop refrigeration is driven by engine directly.
  • The stream line design of van freezer is a bright point.
  • Quick cooling, easy to install are what attract customers very much.

Specification


Model DZD300
Applicable Temperature -18℃~+15℃
Cooling capacity 3000W(0℃)
1600W(-18℃)
Drive model non-independent engine driven
Voltage DC (V) 12V/24V

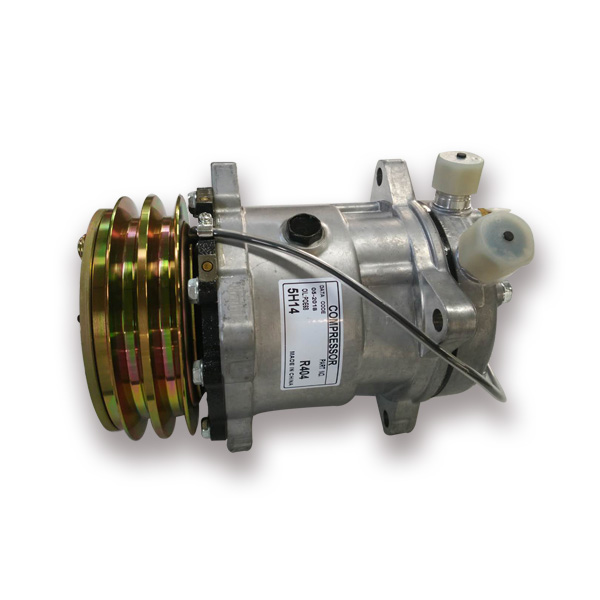

Compressor 5H14
Refrigerant R404A
Refrigerant charge 1.4~1.5Kg

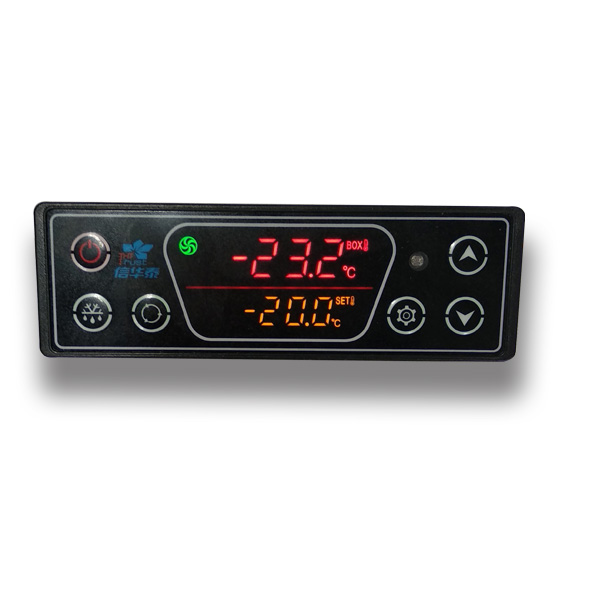

box temperature adjustment Electronic digital display
Safety protect High and low pressure switch
Defrosting Hot gas defrost automatically (manually optional)
Dimensions (mm) Evaporator 850×550×175
Condenser 880×865×210
Weight(KG) Evaporator 19
Condenser 20
Box volume(m3) 10(-18℃)
16(0℃)



Dimension

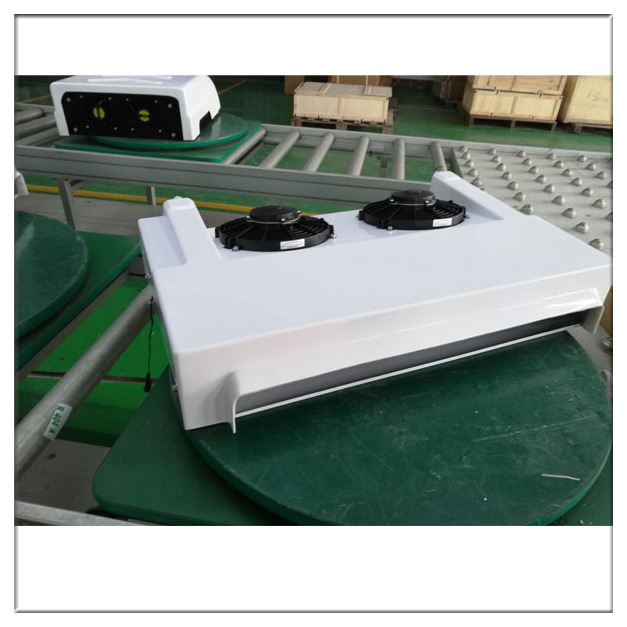

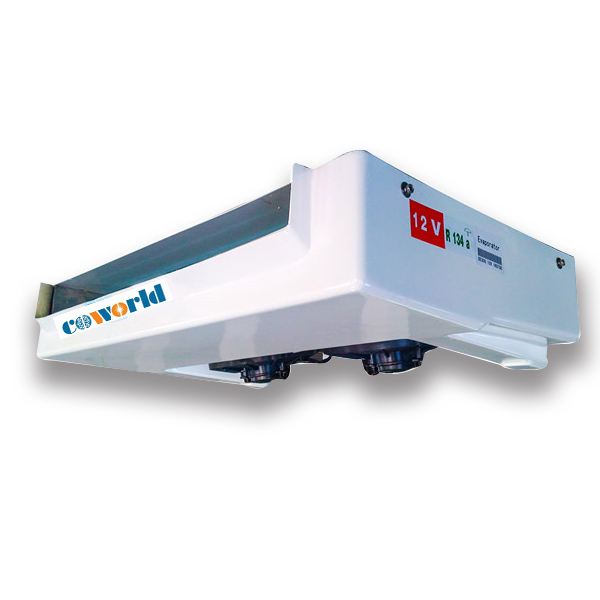

Evaporator     850×550×175(mm)
Condenser     880×865×210(mm)


Package

In wooden case and carton

Optional

  • Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
  • Heating: If it is too cold in your country when winter, we can also add heating function for you.

Others







After-sale

The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
