QZD200
Engine driven
Front mounted
-18℃~+15℃
5H11
R404a

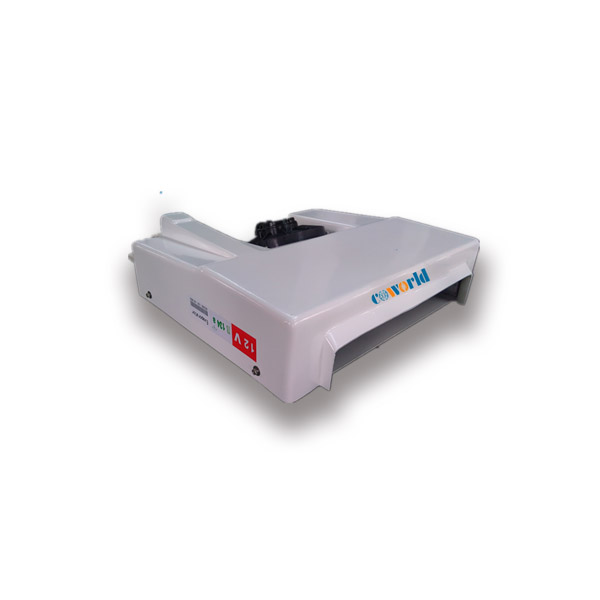

Truck refrigeration unit QZD200


Description:

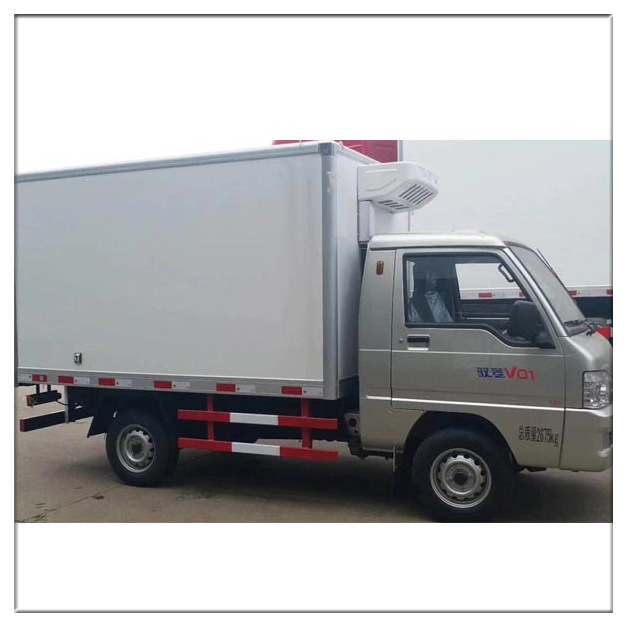

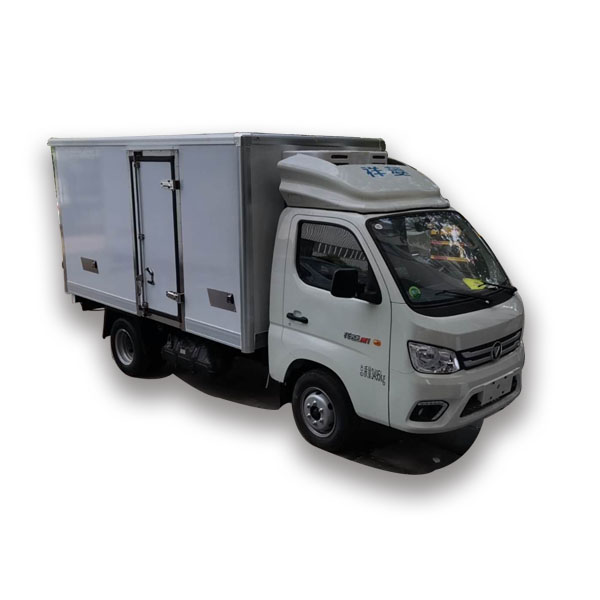

  • The QZD200 frozen cooler unit for truck is front mounted system.
  • The vehicle refrigeration is driven by engine directly.
  • The stream line design of freezer for truck is a bright point.
  • Quick cooling, easy to install are what attract customers very much.
Specification:


Model QZD200
Applicable Temperature -18℃~+15℃(Frozen)
Cooling capacity 2015(0℃)      1150(-18℃)
Drive model non-independent engine driven
Voltage DC (V) 12V/24V
Compressor 5H11(108 cc/r)
Refrigerant R404a
Refrigerant charge 0.8~0.9Kg
Defrosting   Hot gas defrost automatically
Dimensions (mm) Evaporator 610×550×175

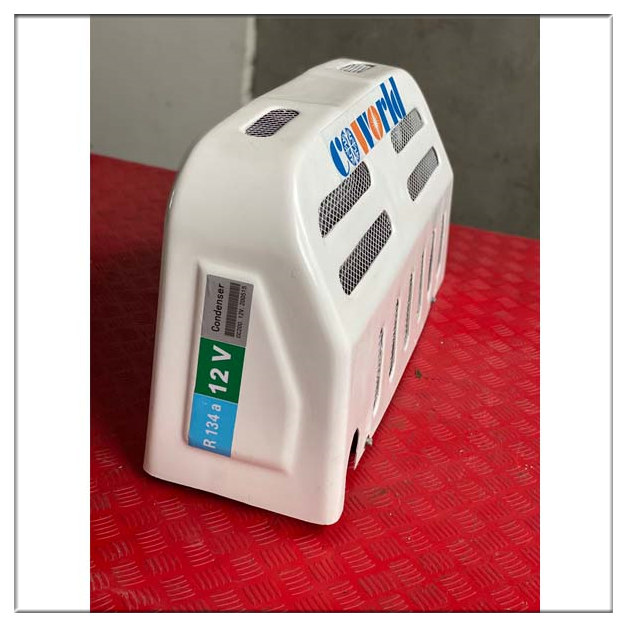

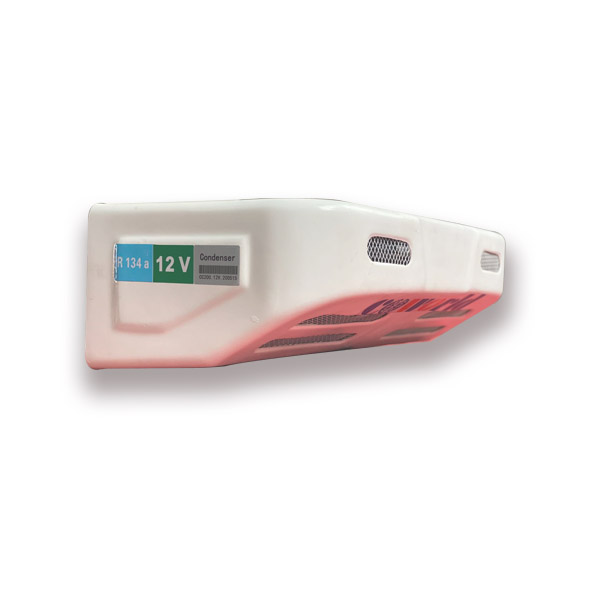

Condenser 765×380×290
Weight(KG) Evaporator 12
Condenser 26.9
Box volume(m3) 6(-18℃)    11(0℃)















Dimension:

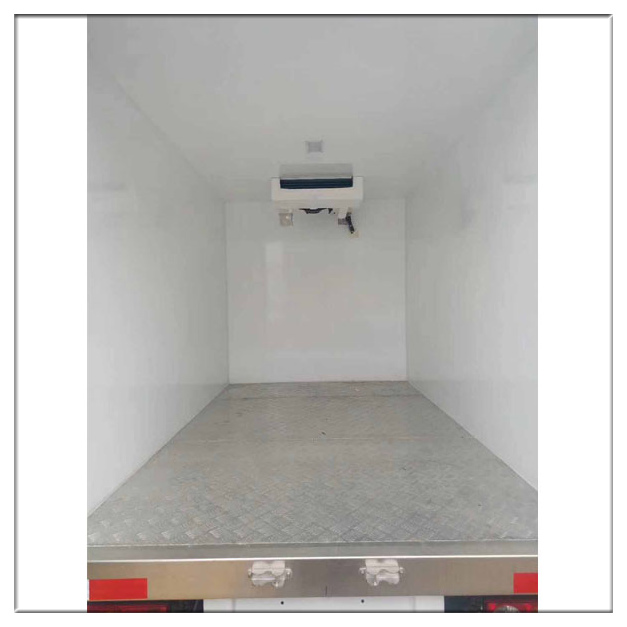

Evaporator     610×550×175 (mm)
Condenser      765×380×290 (mm)

Package:

In cartons

Optional:

  • Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
  • Heating: If it is too cold in your country when winter, we can also add heating function for you.
Others:








After-sale:

The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
