Frozen truck refrigeration QZD300
33 Items in Stock
QZD300
Engine driven
Front mounted
-18℃~+15℃
5H14
R404a
Engine driven
Front mounted
-18℃~+15℃
5H14
R404a

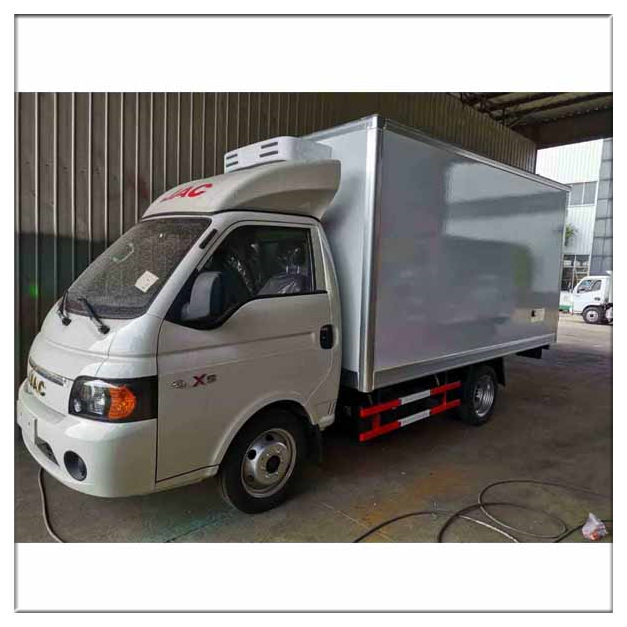

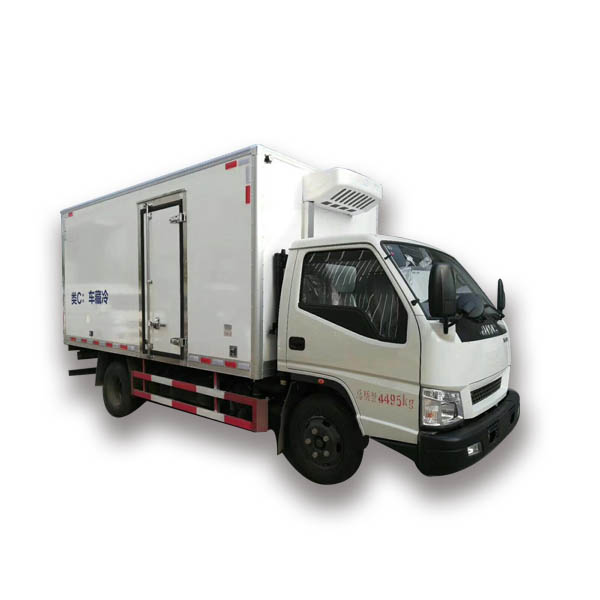

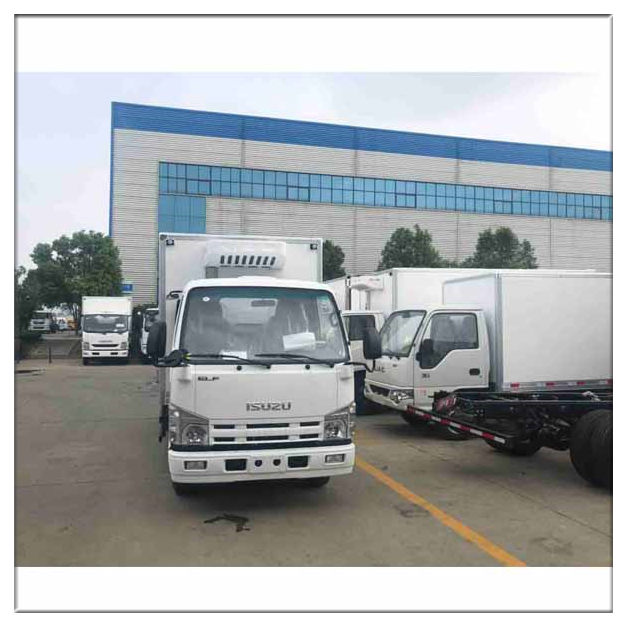

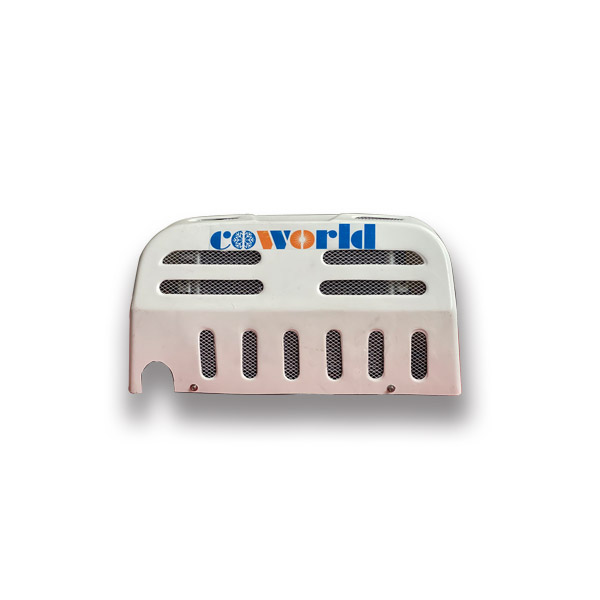

Front mounted refrigeration unit for truck QZD300
Description:- The QZD300 small chiller for truck is front mounted system.
- The coolig unit for vehicle is driven by engine directly.
- The stream line design of truck refrigerator is a bright point.
- Quick cooling, easy to install are what attract customers very much.
| Model | QZD300 | |
| Applicable Temperature | -18℃~+15℃(Frozen) | |
| Cooling capacity |
2920（0℃） 1607（-18℃） |
|
| Drive model | non-independent engine driven | |
| Voltage DC (V) | 12V/24V | |

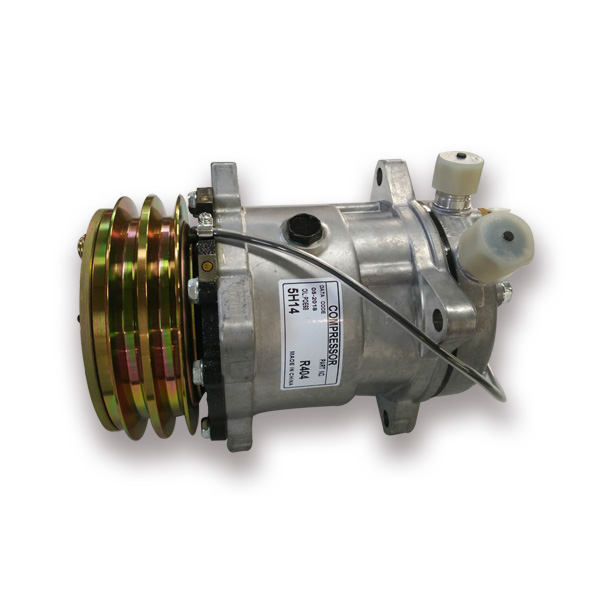

| Compressor | 5H14(138 cc/r) | |
| Refrigerant | R404a | |
| Refrigerant charge | 1.4~1.5Kg | |
| Defrosting | Hot gas defrost automatically | |
| Dimensions (mm) | Evaporator | 850×550×175 |
| Condenser | 925×430×300 | |
| Weight(KG) | Evaporator | 16.5 |
| Condenser | 26.9 | |
| Box volume(m3) |
10（-18℃） 16（0℃） |
|
Dimension:

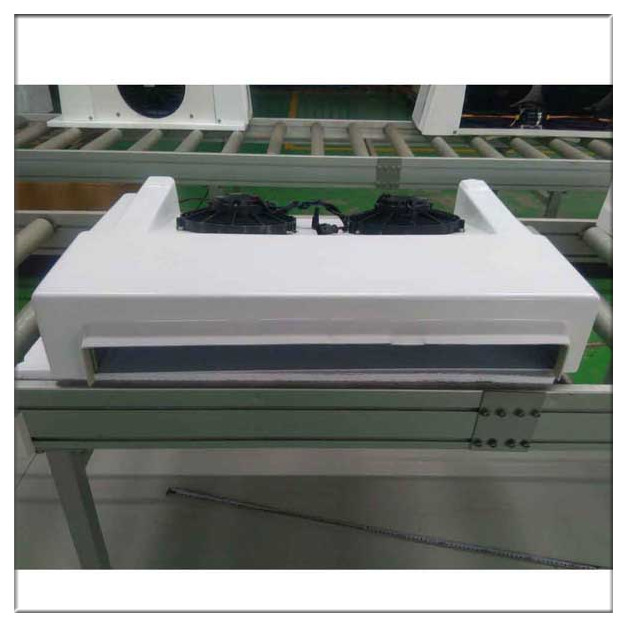

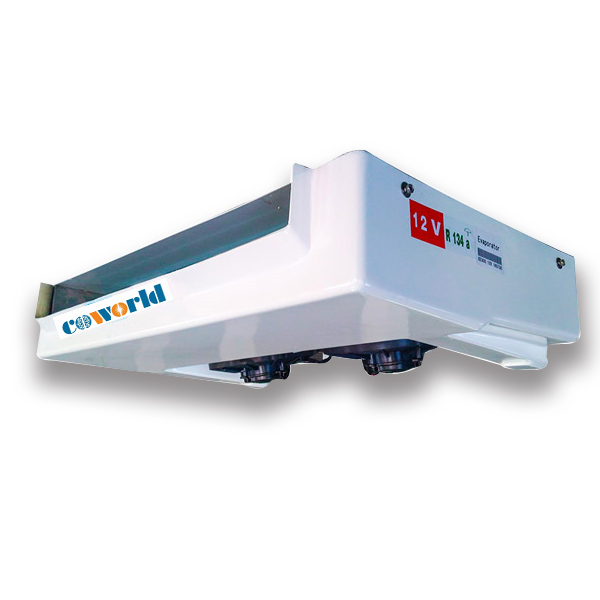

Evaporator 850×550×175(mm)

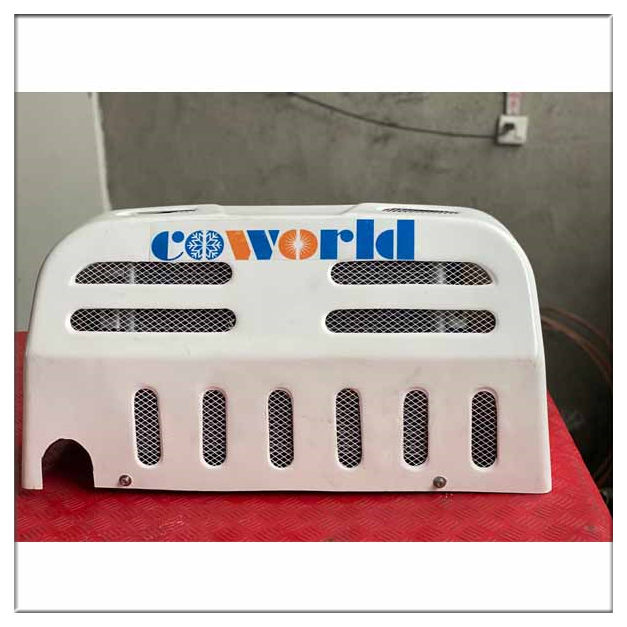

Condenser 925×430×300 (mm)
Package:
In cartons
Optional:
- Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
- Heating: If it is too cold in your country when winter, we can also add heating function for you.
After-sale:
The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
